Playback Status Display Tab Configuration

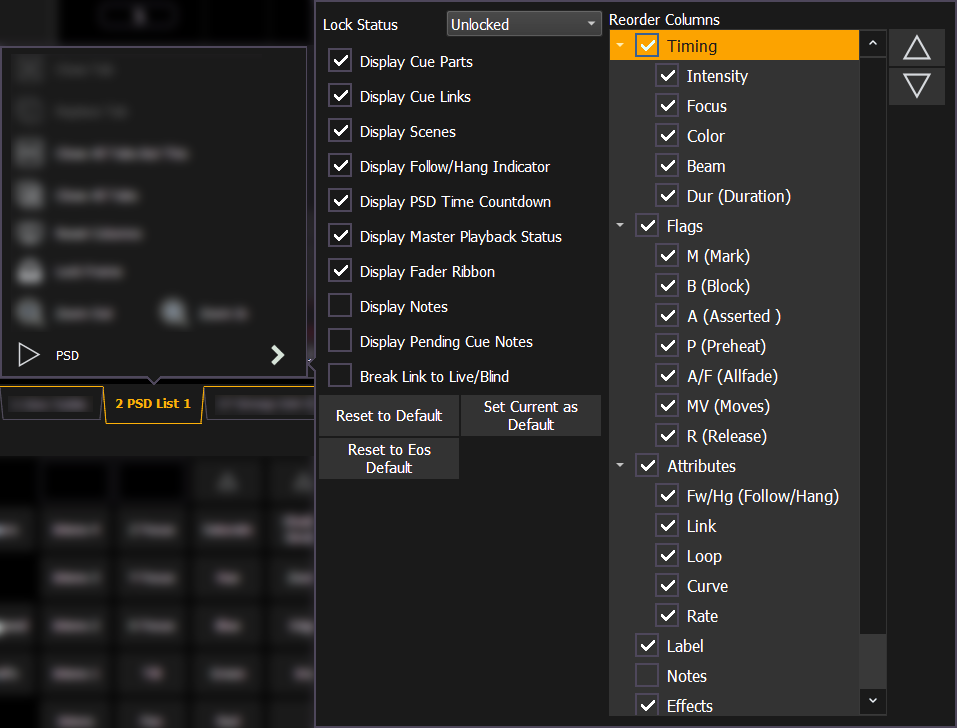

Tab configuration menus contain additional sets of context-specific options for a display. They can be accessed from the bottom of the Tab Tools by right-clicking or double-tapping either the tab or the gear icon to the left of the frame's tab bar.

The following options are available:

  • Target Grid - this option is only available when the PSD is split, and is used along with the Lock Status option. Target Grid allows you to select either the top or bottom display. Press [Format] to split the PSD.
  • Lock Status - allows you to lock the PSD to a certain cue list. When the PSD is split, you will use Target Grid to first select top or bottom of the display, and then you can use Lock Status to select the cue list.

    • Note: Phantom cue lists will display but cannot be locked to. See Cue List Properties to learn more about phantom cue lists.

  • Display Cue Parts - displays the individual parts of a part cue. When not enabled, the number of parts for that cue will display as a superscript number beside the cue's number.
  • Display Cue Links - displays Link / Loop information.
  • Display Scenes - displays cue Scenes.
  • Display Follow/ Hang Indicator - displays the Follow/ Hang arrow indicator before the cue number of any cue that will be triggered by a follow or hang.
  • Display PSD Time Countdown - displays the cue category times countdown in the PSD as a cue is fading.
  • Display Master Playback Status - displays the current cue's status information.

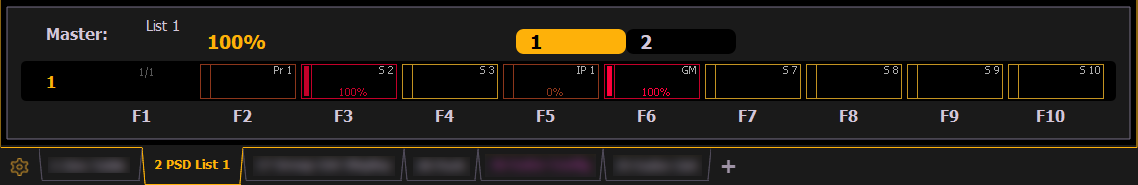

  • Display Fader Ribbon - displays the fader ribbon, which shows the current fader page under the Master Playback Status. Not available on Element 2, Ion Classic, and Element Classic.

  • Display Notes - displays the Cue Notes in a horizontal bar at the bottom of the PSD.
  • Display Pending Cue Notes - displays the Cue Notes for the pending cue in a horizontal bar at the bottom of the PSD.
  • Break Link to Live / Blind - When selecting the Live / Blind display, the PSD will also come into view if it is currently hidden. This option allows you to break the link between the PSD and the Live/ Blind displays so that the PSD will no longer come into view when selecting Live / Blind.

Reorder Columns

Reorder columns allows you choose what data displays in the PSD and what order it displays in. By default, all columns except notes will be displayed. The arrow keys on the right can be used to move columns around. Columns are moved in groups. To select a column header to move, click or tap the name. The check boxes suppress or enable. When an item is enabled to display, a check mark will be in the corresponding box.

Default

You can save your current settings as the default state for the tab. The current default is identified in parentheses.

  • {Reset to Default} - returns the settings to the default state that you created.
  • {Set Current as Default} - uses the current settings and tab number to create a new default state . The default tab will be shown in parentheses.
  • {Reset to Eos Default} - removes your saved default and returns all settings to the Eos defaults.
